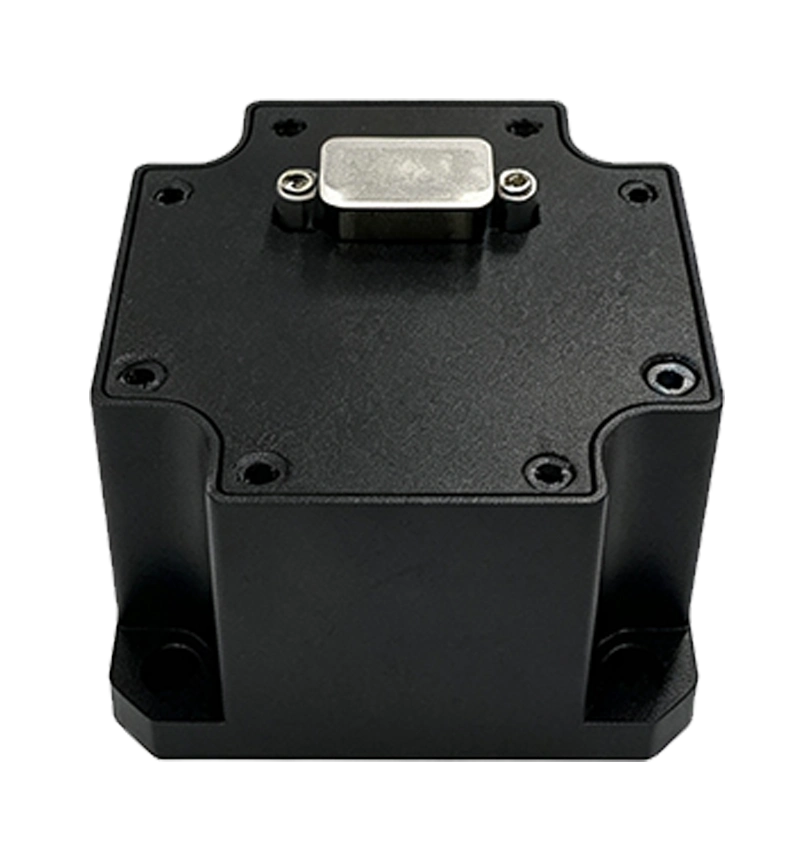

MEMS IMU-BA01/BA01T/BA20 | Tactical-Grade High-Precision Inertial Measurement Unit

Product Overview

The MEMS IMU-BA01/BA01T/BA20 is a highly reliable, cost-effective six-axis MEMS inertial measurement unit (IMU), suitable for applications such as inertial navigation and attitude stabilization. It supports customized hardware and software configurations, can be upgraded to a customized inertial navigation system, and can also connect to other devices to achieve integrated navigation.


Core Process Technology

It integrates high-performance MEMS gyroscopes and accelerometers in an independent structure, representing the leading level of MEMS inertial devices. The module features built-in full-temperature parameter compensation (zero offset, scale factor, etc.) and anti-shock/vibration design, enabling accurate measurement even in harsh environments and delivering a low-cost, high-reliability solution.


High-Precision Device Manufacturing & System Calibration Technology

Leveraging accumulated core technologies, the system adopts high-speed sampling, full-temperature static error compensation (zero offset, installation error, etc.), and dynamic error compensation (coning error) to ensure high performance.

Key Features

  1. Full-temperature compensation (calibration range: -45℃ to +80℃)
  2. High performance, compact size, lightweight design, low power consumption
  3. 2 kHz high-speed sampling capability
  4. Resistant to harsh mechanical environments
  5. Supports in-system firmware upgrade

Main Applications

  1. Missile-borne navigation and control
  2. UAV attitude reference system
  3. Underwater ordnance
  4. Vessel/vehicle attitude measurement
  5. Inertial/satellite integrated navigation system
  6. Drilling and mining systems
  7. Mobile mapping systems
  8. Mobile satellite communication
  9. Seeker stabilization
  10. POS (Position and Orientation System)
  11. North-seeking
  12.
IMU-BA01 & IMU-BA20 & IMU-BA01T Performance Specifications
Parameter Item IMU-BA01 IMU-BA20 IMU-BA01T
Gyroscope Range (°/s) ±200 ±400 ±300
Full-temperature Bias (°/h, 3σ) ≤ 0.5 ≤ 5 ≤ 0.1
Bias Stability (°/h, 10s Smooth) ≤ 0.1 ≤ 1 ≤ 0.05
Bias Instability (°/h, Allan, typ) ≤ 0.01 ≤ 0.2 ≤ 0.01
Bias Repeatability (°/h) ≤ 0.05 ≤ 0.8 ≤ 0.05
Angle Random Walk (°/√h) ≤ 0.01 ≤ 0.08 ≤ 0.005
Scale Factor Nonlinearity (ppm) ≤ 50 ≤ 100 ≤ 150
Bandwidth (Hz) 25 150 ≥100
Accelerometer Range (g) ±10 ±10 ±10
Full-temperature Bias (mg, 3σ) ≤ 1 ≤ 1 ≤ 0.2
Bias Stability (μg, 10s Smooth) ≤ 100 ≤ 100 ≤ 30
Bias Instability (μg, Allan, typ) ≤ 10 ≤ 10 ≤ 3
Bias Repeatability (μg) ≤ 100 ≤ 100 ≤ 10
Velocity Random Walk (m/s/√h) ≤ 0.03 ≤ 0.03 ≤ 0.01
Scale Factor Nonlinearity (ppm) ≤ 500 ≤ 500 ≤ 100
Bandwidth (Hz) 150 150 ≥100
Physical
& Electrical		 Power Supply (V) 5±0.2 5±0.2 5~12
Static Power (W) 1.5 1.5 ≤2
Start-up Time (s) 2 2 ≤2
Communication Interface 1×RS-422, 1×Synchronous Output 1×RS-422, 1×Synchronous Output 1×RS-422, 1×Synchronous Output
Max Update Rate (Hz) 200 (Configurable) 200 (Configurable) 2000
Dimensions (mm×mm×mm) 47×47×31.5 47×47×31.5 47×47×31.5
Weight (g) 200 200 100±10
Environmental Operating Temperature (℃) -45 ~ 80 -45 ~ 80 -40 ~ 80
Storage Temperature (℃) -55 ~ 85 -55 ~ 85 -55 ~ 85
Vibration (g, RMS) 6.06 6.06 6.06(20~2000Hz)
Shock (g) 1000g/1ms (Power On) 1000g/1ms (Power On) 500g/1ms
MTBF (h) 200000 200000 Custom
