Main Features
The Vision Feature Matching Navigation Module provides UAV visual positioning, intelligent ground target recognition/tracking, and geolocation functions, meeting navigation and positioning requirements in GNSS-denied environments.
Application Fields
Based on the map-matching principle, this module performs visual positioning for aircraft and outputs latitude and longitude information (via serial port to the navigation control system). Its compact design makes it widely suitable for various unmanned aerial vehicle systems.

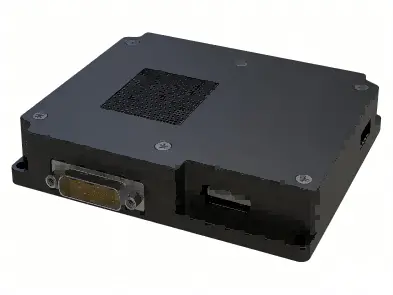

| Technical Parameters | |
|---|---|

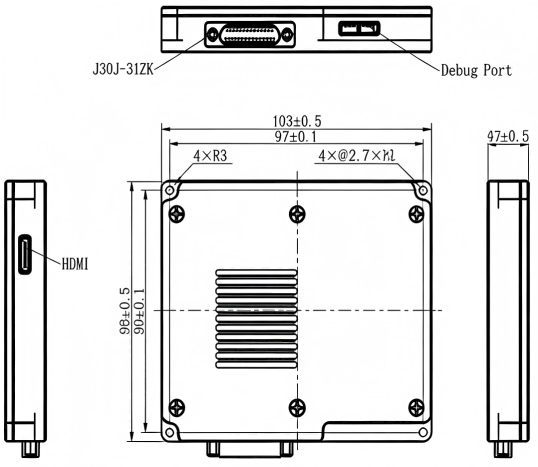

| Dimensions | (103×86×15) mm |
| Weight | ≤150g |
| Supply Voltage | 18V ~ 32V |
| Power Consumption | ≤15W |
| Camera Type | Visible Light or Infrared Camera |
| Visible Light Resolution | 1600×1200 |
| Infrared Resolution | 640×512 (Optional) |
| Camera Interfaces | SDI, Mipi, USB |
| Interface 1 | 2×RS422 (for communication with flight computer) |
| Interface 2 | 2×Ethernet (for program update, debugging and map data download) |
| Positioning Accuracy (1σ) | ≤40m (flight altitude < 300m) ≤5% of flight altitude (300m ≤ flight altitude ≤ 3000m) |
| On-board Storage | 64G/256G (Optional) |
| Technical Parameters | |
|---|---|

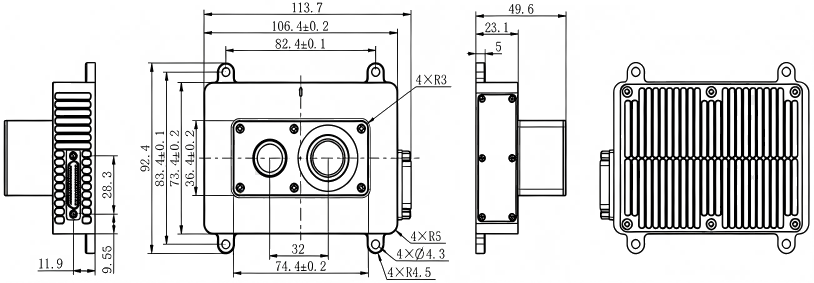

| Dimensions | (114×93×50) mm (Customizable) |
| Weight | ≤220g |
| Supply Voltage | 18V ~ 32V |
| Power Consumption | ≤15W |

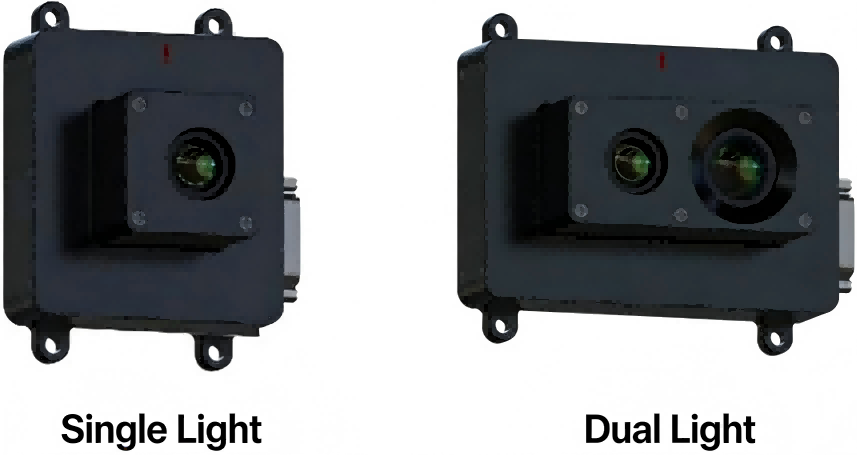

| Camera Type | Visible Light & Infrared Camera |
| Resolution & Focal Length | Visible Light: 1600×1200 Infrared: 640×512 |
| On-board Storage | 64G / 256G (Optional) |
| Interface 1 | 2×RS422 (for communication with flight computer) |
| Interface 2 | 2×Ethernet (for program update, debugging and map data download) |
| Positioning Accuracy (1σ) | ≤40m (flight altitude < 300m) ≤5% of flight altitude (300m ≤ flight altitude ≤ 3000m) |
| Operation Time | All-day Available |
| External IMU | Compatible with external MEMS or Fiber Optic IMU for integrated navigation |
