MEMS Positioning and Orientation System

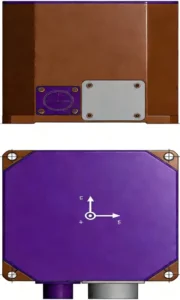

MS8000

High-Precision Self-Alignment Based on MEMS Technology

The MS8000 MEMS Positioning and Orientation System is a lightweight, compact inertial navigation attitude sensor with the following capabilities:
  • Autonomously completes alignment and outputs accurate azimuth and horizontal attitude;
  • Can be combined with external devices (e.g., odometers) to enable autonomous positioning and navigation of the carrier;
  • Integrates Beidou satellite positioning, supporting integrated navigation (inertial + satellite) when Beidou is available.
Core functions: Outputs the carrier’s position, azimuth, and horizontal attitude (pitch/roll angles).


Advanced Processes and Technologies

  • Full-temperature compensation: Compensates for parameters like zero offset, scale factor, and non-orthogonal error across the entire temperature range, ensuring long-term measurement accuracy;
  • High-precision synchronization: Supports external GNSS/PPS input for accurate UTC time synchronization;
  • High-reliability design: Integrated and sealed structure, adapted to harsh environments, stably measures the carrier’s angular/linear motion parameters, providing a low-cost and highly reliable solution.


High-Precision Device Manufacturing and System Calibration Compensation Technology

Combined with high-precision device manufacturing processes, the system adopts key technologies such as high-speed sampling, full-temperature static error compensation (zero offset, scale factor, installation error, etc.), and dynamic error compensation to ensure optimal performance in all scenarios.

Key Features

  1. Localization of core components
  2. High performance in compact size (small volume & high performance)
  3. Full-temperature calibration compensation (-40℃ to +80℃)
  4. 1KHz high-speed sampling
  5. Self-alignment accuracy up to 3mil
  6. Supports over-the-air software upgrade
  7. Compatible with external odometer for trajectory calculation

Main Applications

  1. Unmanned ground vehicles
  2. Vehicle-mounted positioning & orientation
  3. Self-alignment reference
  4. Radar/infrared antenna stabilization platform
  5. UAV attitude reference/trajectory control
  6. Vessel/vehicle attitude measurement
  7. Inertial/satellite integrated navigation system
  8. Drilling & mining systems
  9.
Performance Specifications
Gyroscope
Range ±200°/s
Zero Offset (Full Temperature) 1°/h
Bias Stability (10s Smoothed) <0.1°/h
Bias Repeatability <0.1°/h
Resolution <0.5°/h
Non-Orthogonality <3
Scale Factor Nonlinearity <100ppm
Bandwidth ≥100Hz
Accelerometer
Range ±20g
Zero Offset (Full Temperature) <2mg
Bias Stability (1σ, 10s Smoothed) <0.05mg (1σ)
Bias Repeatability <0.05mg (1σ)
Resolution <0.05mg (1σ)
Non-Orthogonality <3
Scale Factor Nonlinearity <500ppm
Bandwidth ≥100Hz
System
Operating Temperature -45℃~80℃
Power Consumption <10W
Startup Time <3s
Self-Alignment Accuracy ≤3mil (1σ, 5min Alignment)
Attitude Accuracy ≤0.5mil (1σ)
Weight <1.5kg
Dimensions ≤115mm×95mm×105mm
